This assembly line is the scooter motorcycle assembly line, serving two-wheeled motor vehicle manufacturing industry. It is designed for full assembly of fuel scooter motorcycles.

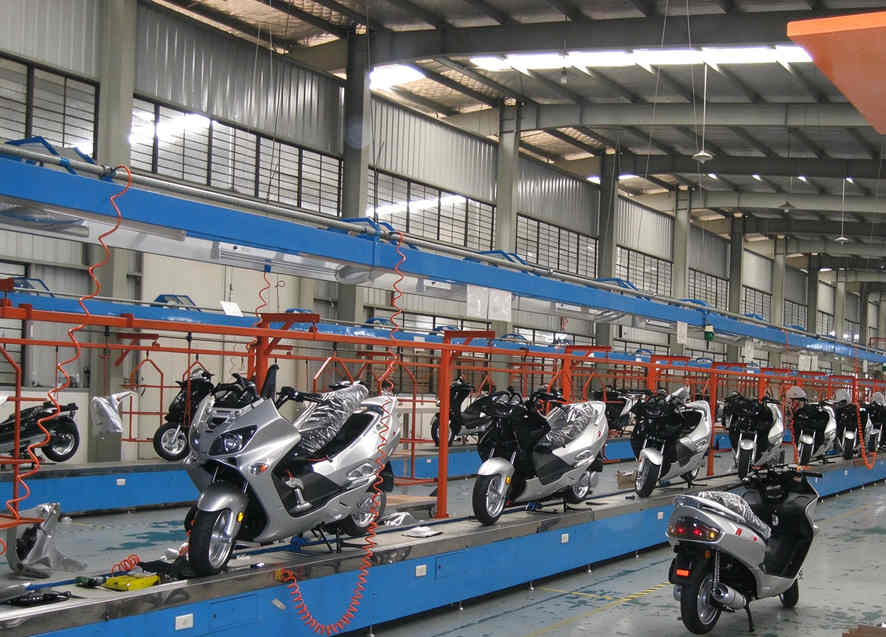

As shown in the on-site photo, the production line adopts heavy-duty steel slat conveyor with blue load-bearing surface to carry semi-finished scooter motorcycles. Complete vehicles are placed on slat support jigs for circulation. Overhead blue main air pipes, orange coiled pneumatic hoses and workstation lighting are installed. Orange cantilever material racks beside the line store body panels and spare parts. Workers perform station-based assembly along the linear layout. The line features modular heavy-duty slat structure as an independent scooter motorcycle assembly line with great universality. It is compatible with multiple displacement scooter motorcycle models. By adjusting support jigs and process cards, product changeover can be realized without large-scale line reconstruction, meeting flexible mass production requirements for multi-model scooter motorcycles.
The whole line can be put into operation independently, or connected with frame pre-assembly line, engine pre-assembly line and offline test station to build a complete production chain for scooter motorcycles. It adopts straight layout according to factory space, meeting mass assembly demands for small, medium and large scooter motorcycle manufacturers. The modular design allows adding workstations and extending the line with capacity growth, supporting phased investment and lowering one-time investment cost. It is the key production equipment for domestic scooter motorcycle OEMs to realize standardized assembly and stable output.
The assembly follows standardized workflow: Frame loading & positioning → Engine assembly docking → Chassis assembly → Body panel assembly → Pipeline & wiring harness layout → Fitting assembly and bolt tightening → Static vehicle commissioning → In-line inspection → Isolation and rework of non-conforming products → Finished scooter motorcycle off-line.
Detailed description: Frame loading: The scooter motorcycle frame is hoisted onto slat support jig, conveyed to each workstation. Positioning jig supports the whole vehicle to avoid displacement during chassis assembly. Engine assembly docking: Complete docking and assembly of scooter engine, transmission box and rear swingarm, the core process for scooter motorcycle assembly. Chassis assembly: Mount front wheel, front shock absorber and brake system to finish walking mechanism assembly. Body panel assembly: Install plastic body panels, footrest and protective covers. Pipeline & wiring harness: Lay fuel pipes, brake pipes and wiring harness. Each workstation is equipped with orange coiled pneumatic hoses and air source ports. Air screwdrivers are used for bolt tightening to guarantee consistent torque. Accessory assembly: Install lights, rearview mirrors, instrument panel and seat. Static commissioning: Test engine, brake, steering and lighting systems to find assembly defects. In-line inspection: Check assembly clearance, fastening status and system performance. Defective products are isolated and reworked on site. Off-line: Qualified scooter motorcycles are conveyed to offloading station for test run and cleaning before storage.
The whole process is split into balanced takt stations, suitable for multi-component step-by-step assembly. Station-based operation helps new operators get familiar quickly and facilitates production management, capacity statistics and quality traceability.
This scooter motorcycle assembly line can be customized according to vehicle model, production takt and factory conditions. Main customizable parameters:
All parameters can be adjusted according to product drawings, takt and factory layout. We provide one-stop service including tooling design, manufacturing, on-site installation and commissioning.
